SCHULTZ® S740

Temperature12℃～400℃

SCHULTZ® S740 is a gas/liquid phase high temperature synthetic heat transfer fluid with outstanding thermal stability, which is operated in temperature range of 12℃～400℃. SCHULTZ® S740 has the highest operation temperature among synthetic heat transfer fluids due to its incomparable and irreplaceable high temperature performances, which is widely used in CSP industry. SCHULTZ® S740 is the same product as Dowtherm A and Therminol VP-1, which can be mixed together in any ratio.

sales@dynovacn.com

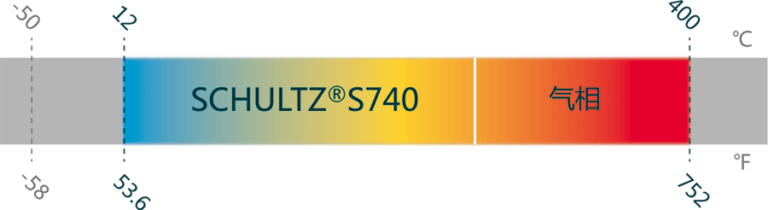

Product temperature

Product Features

Remarkable Thermal Stability

SCHULTZ® S740 has the best thermal stability and provides reliable operation performance in long term with temperature range of 12℃～400℃.

Gas/Liquid Phase Operation

SCHULTZ® S740 can be both used in gas and liquid phase operations due to its vaporation/condensation property. SCHULTZ® S740 is the best choice for liquid phase heating system with temperature range of 12℃～400℃ and gas phase system with range of 257℃～400℃.

Low Vapor Pressure

SCHULTZ® S740 has very low vapor pressure under high temperature, which is quite important to gas phase fluid operation. Its saturated vapor pressure is as low as 1.06MPa when the temperature is at 400℃.

Excellent Temperature Control

SCHULTZ® S740 can completely satisfy the requirements of stable heat transfer and accurate temperature control due to the constant and well-distributed heating temperature generated by gas phase heat transfer system.

Typical data

Name	SCHULTZ® S740
Apperance	Colorless transparent liquid
Component	Biphenyl/Diphenyl Oxide Mixture
Moisture Content / (mg/kg)	114
Flash Point / ℃	118
Autoignition Point / ℃	600
Crystallization Point / ℃	12
Density (20℃) / (kg/m³)	1063
Acid Value (KOH) / (mg/g)	0.01
Carbon Residue/ %	0.01
Sulphur Content / (mg/kg)	3
Chlorine Content / (mg/kg)	4
Kinematic Viscosity / (mm²/s) 40℃	2.5
100℃	0.99
Thermal Expansion Coefficient (200℃) / ℃	0.000979
Volume Shrinkage when Freezing / %	6.27
Volume Expansion when Fusion / %	6.69
Atmospheric Boiling Point / ℃	257
Average Molecular Weight	166
Surface Tension (25℃) / (mN/m)	36.6
Resistivity (20℃)/ (Ω•cm)	6.4×10¹¹
Heat of Fusion / (kJ/kg)	97.3
Heat of Vaporation (400℃) / ( kJ/kg)	206
Pseudocritical Temperature / ℃	499
Pseudocritical Pressure / bar	33
Pseudocritical Density / (kg/m³)	327
Optimal Applicable Range / ℃ Liquid Phase	12～400
Gas Phase	257～400
Allowable Maximum Operation Temperature / ℃	400
Allowable Maximum Film Temperature / ℃	430

Note: The above data are based upon test samples in laboratory, and not guaranteed for all products. For full specifications of SCHULTZ® S740, please contact our sales dept.
