SCHULTZ® S760
SCHULTZ® S760
SCHULTZ® S760

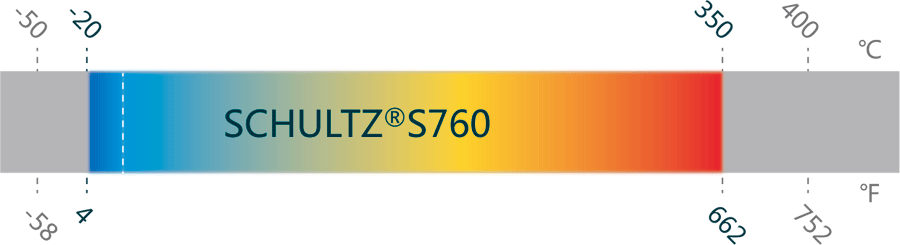

Temperature-20℃~350℃
SCHULTZ® S760 is an excellent synthetic super high temperature heat transfer fluid with outstanding thermal stability. It provides long lasting service life in operation temperature of -20℃~350℃. SCHULTZ® S760 is the same product as Dowtherm RP and can be mixed together in any ratio.
Contact us
sales@dynovacn.com
Product temperature


Product Features
High Thermal Stability
SCHULTZ® S760 is one of the most heat resistant liquid phase fluids. Its maximum operating temperature in liquid phase is as high as 350℃ due to the premium thermal stability.
01
Good Low Temperature Pumpability
The great low temperature pumpability of SCHULTZ® S760 makes it easier to startup in cold areas.
02
Excellent Cleanness
The low thermal degradation rate of SCHULTZ® S760 makes it difficult to produce high boilers. SCHULTZ® S760’s high cleanness and anti-coking ability constantly keep the system clean and extend its service life.
03
Typical data
NameSCHULTZ® S760
ApperanceColorless transparent liquid
ComponentDiaryl Alkyl
Moisture Content / (mg/kg)40
Flash Point / ℃192
Autoignition Point / ℃390
Pour Point  / ℃-30
Density (20 ℃) / (kg/m3)1026
Acid Value (KOH) / (mg/g)0.01
Carbon Residues / %0.01
Distillation Range：2% / ℃330
Kinematic Viscosity/(mm2/s)  0℃227
40℃14.8
100℃2.8
Average Molecular Weight236
Thermal Expansion Coefficient (300℃)/ ℃0.000952
Heat of Combustion / (kJ/kg)40194
Pseudocritical Temperature / ℃575
Pseudocritical Pressure / bar20
Pseudocritical Volume / (L/kg)3.4
Optimal Applicable Range / ℃-20～350
Allowable Maximum Operation Temperature / ℃350
Allowable Maximum Film Temperature / ℃380

Note: The above data are based upon test samples in laboratory, and not guaranteed for all products. For full specifications of SCHULTZ® S760, please contact our sales dept.
